74004PU
DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PUR Halogen Free jacket, AWM 21292
VESTA TECHNOLOGY
Category 7 Ethernet cable
Hirschmann
A broad range of Category 7 cables for your most bandwidth-intensive applications. These ultra-reliable cables support the growing demand for high-performance networking.
Features & benefits
- Built-in reliability: an ultra-robust design ensures a long cable lifespan
- Future-readiness: 10 Gb/s+ performance supports growing bandwidth demands and network expansion
- Signal integrity: additional shielding protects the signal from interference
Products (23)
74004
XGIE, 4 Pair 26 AWG BC - Bare Copper, Polyethylene, Foam-Skin Insulation, Overall Tinned Copper Shield, Black Polyurethane, Zero Halogen (ZH) Outer Jacket, CSA FT2 FT2 UL FT2; CSA FT2; EN 60754-2 Acid Gas Generation
10G7E02C
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket
74005NH
DataTuff® 7, 4 Pair AWG 26 Bare Copper - Stranded, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, LSZH / FRNC jacket, AWM 20851
74005PU
DataTuff® 7, 4 Pair AWG 26 Bare Copper - Stranded, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PUR Halogen Free jacket, AWM 21292
74004NH
DataTuff® 7, 4 Pair AWG 23 Bare Copper - foamskin, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, LSZH / FRNC jacket, AWM 20851
10G7E02B
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket
10G7E01C
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, F/FTP, Foam Polyethylene insulation, each pair with foil shield, AWG 26 solid tinned copper drainwire, overall foil shield, LSZH jacket, CPR Euroclass Cca
1885ELW
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
BE83805
CAT7 4 Pair 26AWG Stranded Tinned Copper Conductor, Foam Polyolefin Insulated, Individually Pair shielded with AL-mylar tape binder & Overall Shieled with Al-mylar + ATC wire braid & Overall E-Beam Cross Linked/LSZH Jacket Ethernet RailCable.
1885VNC
DNV GL, Shipboard, Category 7 Premise Horizontal Cable (600MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket IEC60332-3-24, verified by GHMT-PVP
74004ELV
DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyolefin (PO, PE, PP) insulation, S/FTP - Overall Braid / Individual Foil shielding, LSZH / FRNC jacket, AWM 20851, B2ca
1885ENC
Category 7 Premise Horizontal Cable (600MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket IEC60332-3-24, verified by GHMT-PVP
74004ELW
DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyolefin (PO, PE, PP) insulation, S/FTP - Overall Braid / Individual Foil shielding, LSZH / FRNC jacket, AWM 20851, Cca
1887ENH
Category 7 Enhanced Premise Horizontal Cable (1000MHz) shotgun, 2 x 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
1885ENH
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
10G7E02D
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
NH50117SF
Industrial Ethernet CAT7, S/FTP, 4P24AWG/7, Tinned Strand copper Conductors, Foam Polyolefin Insulation, Individual Shielded Pair + Braid shield, LZSH Jkt, Fire Resistant, EN 50200, EN 50289-4-16 & IEC60331-23
74004E
DataTuff® 7, 4 Pair AWG 23 Bare Copper - Solid, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PVC jacket, AWM 20276
1885ELV
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
50007TSF
Industrial Marine Ethernet Cat7 S/FTP, 4 Pr 23AWG Stranded Bare Copper, FoamPolyethylene Insulation, Low Smoke Zero Halogen (SHF1) Jacket, DNV
BA43806FR
Industrial Ethernet CAT7, S/FTP, 4P24AWG/7, Tinned Strand copper Conductors, Foam Polyolefin Insulation, Individual Shielded Pair + Braid shield, LZSH Jkt, Fire Resistant, EN 50200, EN 50289-4-16 & IEC60331-23

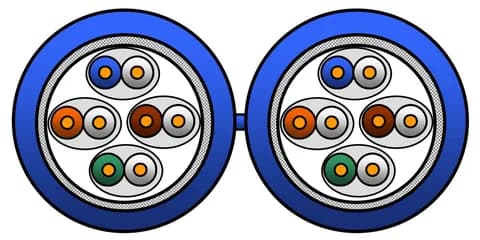

1887ELV
Category 7 Premise Horizontal Cable (600MHz) shotgun, 2 x 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with foil shield, overall tinned copper braid shield (30% coverage), LSZH jacket, verified by GHMT-PVP
